Single Output Ultrathin Power Supply MSF - 10 watt Adjustable For DC Voltage
商品の詳細
| 保証 | 2年 | OEM | はい |
|---|---|---|---|
| PD2 | はい | 条件 | オリジナルの新 |
| 重量 | 0.19kg | シングル出力 | 力 20w |
| 動作温度 | -10℃~+50℃ |
製品の説明
Single Output Ultrathin Power Supply MSF - 10 watt Adjustable For DC Voltage
Technique parameter:
| Model | MSF-20-5 | MSF-20-12 | MSF-20-15 | MSF-20-24 |
| DC output voltage current | 5V 0-4A | 12V 0-2A | 15V 0-1.6A | 24V 0-1A |
| Wave and noise | 50mVp-p | 50mVp-p | 50mVp-p | 50mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 68% | 71% | 72% | 75% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| input voltage range | 85-264VAC 120-370VDC 47-63Hz | |||
| Inpact current | Cold start current 30A/230VAC | |||
| Overload proctection | 105%-135% cut off the output, automatic recovery | |||
| Over-voltage protection | ||||
| Setup rise hold up time | 200ms, 50ms, 20ms/230vac at full load | |||
| Withstand voltage |
I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute |
|||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ | |||
| Dimension | 97*58*25mm | |||
| Packing | 28.5*21.6*32cm/100PCS/19kg | |||

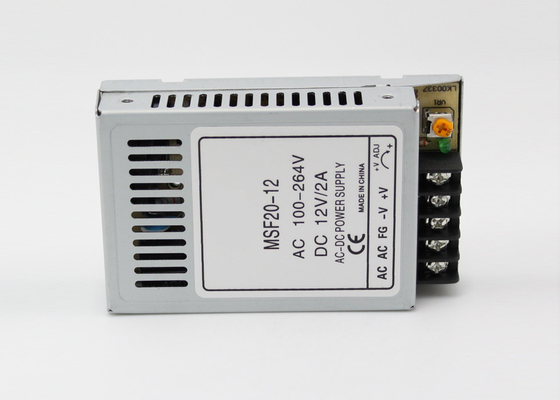

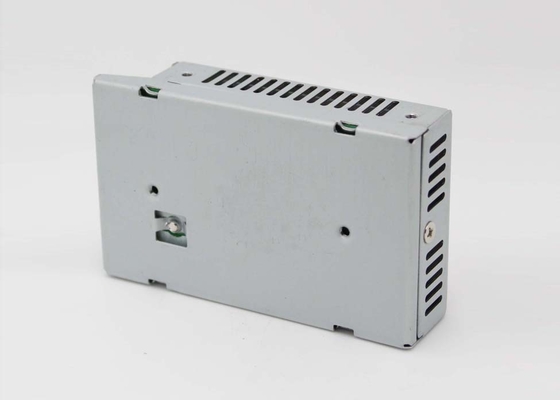

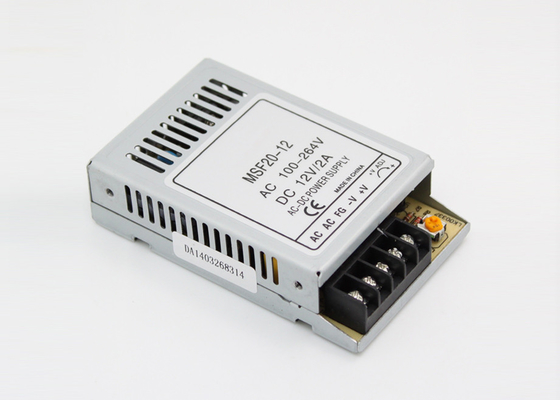

Product Picture
Dimensions
The installation of power supply
Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.
