MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC
商品の詳細
| 保証 | 2年 | OEM | はい |
|---|---|---|---|
| PD2 | はい | 寸法 | 78*48*21mm |
| 条件 | オリジナルの新 | 重量 | 0.15kg |
| シングル出力 | 力 10w | 動作温度 | -10℃~+50℃ |
製品の説明
MSF - 10 W Single Output Ultrathin Switching Power Supply AC DC
Summary
- Single output: power 10w
- Input voltage: 85-264VAC 120-370VDC
Technique parameter:
| Model | MSF-10-5 | MSF-10-12 | MSF-10-15 | MSF-10-24 |
| DC output voltage current | 5V 0-2A | 12V 0-1A | 15V 0-0.8A | 24V 0-0.5A |
| Wave and noise | 50mVp-p | 50mVp-p | 50mVp-p | 50mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 68% | 71% | 72% | 75% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| input voltage range | 85-264VAC 120-370VDC 47-63Hz | |||
| Inpact current | Cold start current 30A/230VAC | |||
| Overload proctection | 105%-135% cut off the output, automatic recovery | |||
| Over-voltage protection | ||||
| Setup rise hold up time | 200ms, 50ms, 20ms/230vac at full load | |||
| Withstand voltage |
I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute |
|||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ | |||
| Packing | 24.5*17.5*26.5cm/100PCS/15kg | |||

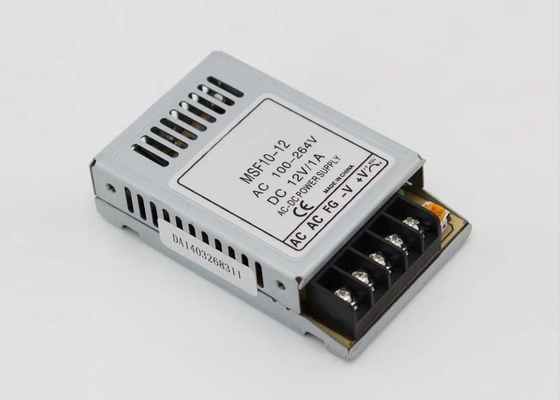

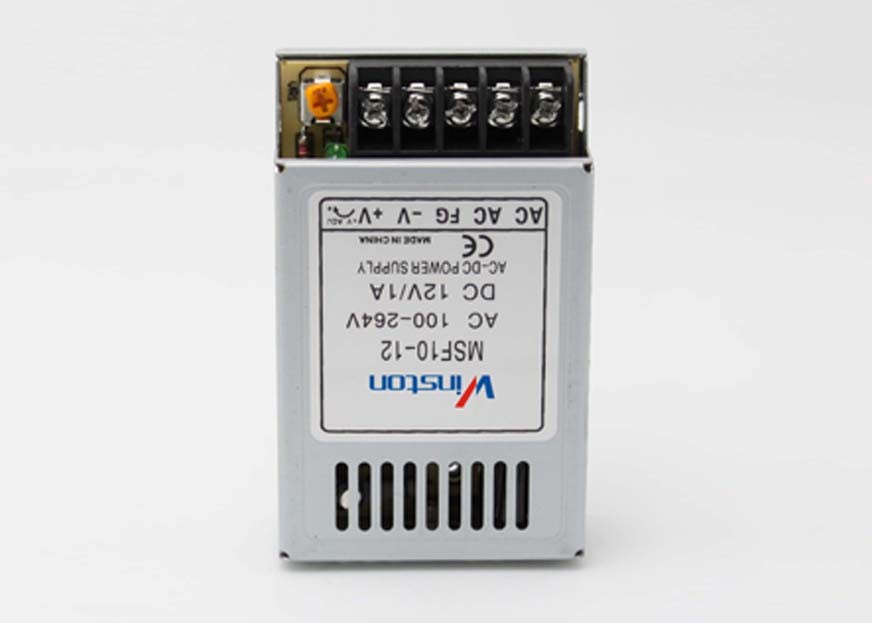

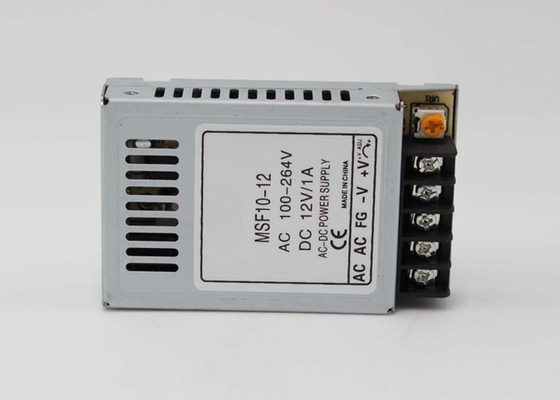

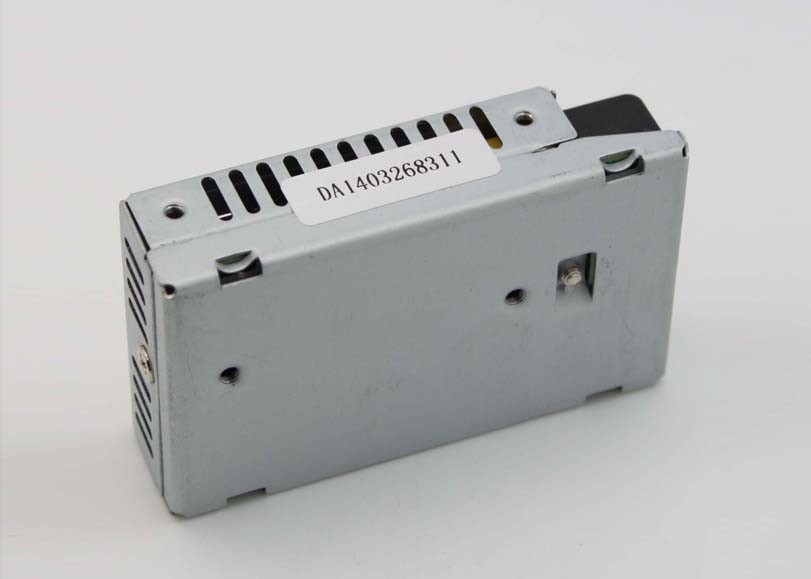

Product Picture
Dimensions
The installation of power supply
Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.
The use of power supply
1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.
2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.
